0° ~12° MOVING WALK CIVIL DRAWING

Category:

CIVIL DRAWING

Montgomery has set up a high-quality R&D team with doctors and masters as the main body, and has learned from the production process and flow of Montgomery elevators in the United States to dominate the Chinese elevator market with technology.

Consulting

Return

Keywords: elevator | sightseeing elevator | passenger elevator

Tel：400-106-9588

E-mail：MONTMERY@montmery.com

Details

explain

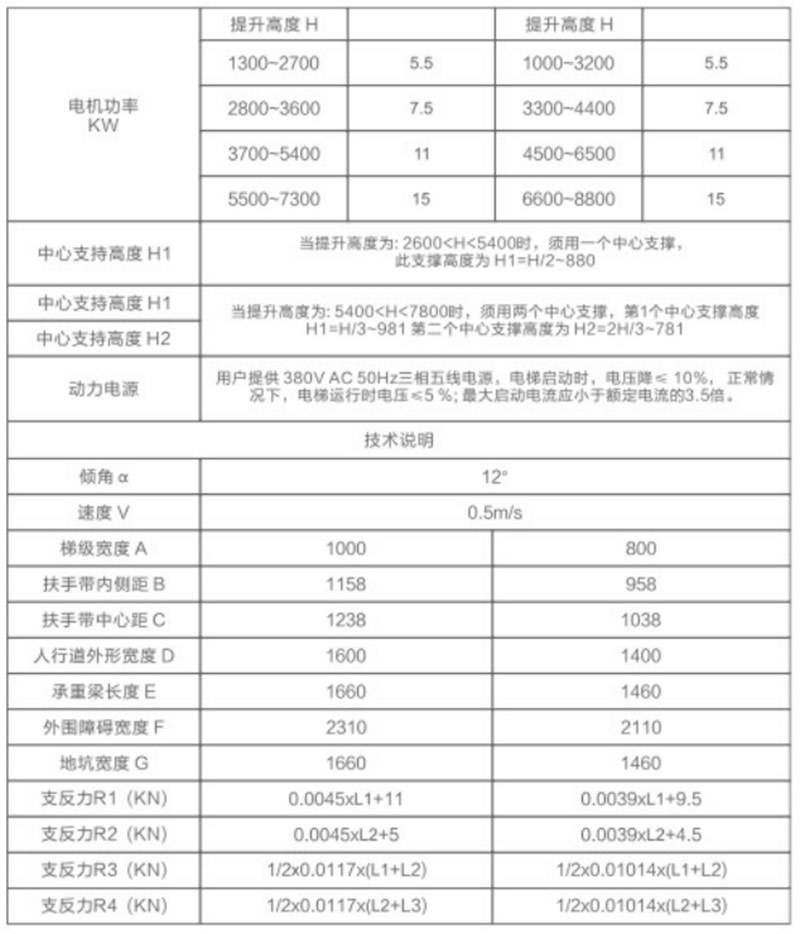

1. When the escalator is installed above the second floor, the pit is canceled, and the civil substructure is symmetrical with the upper part.

2. There shall be a fully unblocked area at the entrance and exit of the escalator, with a width of not less than 1238 and a depth of not less than 2500 from the turning end of the handrail to the front obstacle.

3. The handrail of escalator shall not be less than 500 to any obstacle.

4. The user shall provide a grounding device with resistance less than 4 Ω.

5. When lifting height H ≤ 2600, support R3 and R4 shall be canceled.

6. When the lifting height is 2600<H ≤ 5400, only R3 needs to be supported; And L1=L2=L/2.

7. When the lifting height is 5400<H ≤ 7800, R3 and R4 shall be supported; And L1=L2=L3=L/3.

8. This drawing is the civil dimension of the current 12 ° standard sidewalk. If the civil construction cannot be carried out according to the standard, please contact the technical department of Montgomery escalator in time.

9. The unit of this drawing is mm. It is subject to change without notice.
