35° ESCAL ATOR CIVIL DRAWING
Montgomery has set up a high-quality R&D team with doctors and masters as the main body, and has learned from the production process and flow of Montgomery elevators in the United States to dominate the Chinese elevator market with technology.

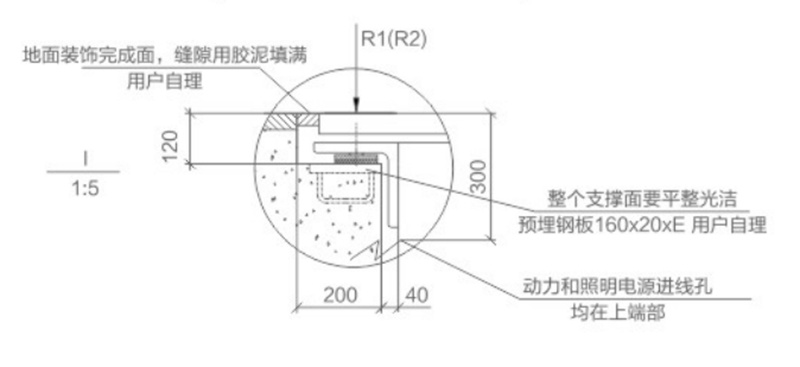

1. When the escalator is installed above the second floor, the pit is canceled, and the civil substructure is symmetrical with the upper part.
2. There shall be a fully unblocked area at the entrance and exit of the escalator, with a width of not less than 1238 and a depth of not less than 2500 from the turning end of the handrail to the front obstacle.
3. The handrail of escalator shall not be less than 500 to any obstacle.
4. Motor AC380V50HZ motor power is shown in the table.
5. The user shall provide a grounding device with resistance less than 4 Ω.
6. The power supply provided by the user to the main switch of the escalator requires three-phase five-wire (flexible wire).
7. All dimensions are in millimeters, and no further notice will be given in case of any change.
